PC Serial Ports: Do You Still Need Them?

The relevance of traditional computer interfaces, such as the COM port or serial port, is being questioned in modern computing. Historically, these ports were crucial for transferring data sequentially.

Despite newer technologies, serial ports remain on legacy systems like POS systems and medical equipment. This prompts the question: are they still necessary?

Examining the evolution of serial communication and its current uses will help clarify the significance of serial ports in today’s technology. Understanding their functionality and historical importance is key to determining their relevance.

By analysing their role in modern computing, we can decide whether to maintain compatibility with legacy equipment or transition to modern alternatives, thus guiding users who rely on such interfaces for data transfer.

What Are PC Serial Ports?

Serial ports on PCs are interfaces that enable data transmission between the computer and peripheral devices. They are physical connectors that allow for the exchange of information bit by bit.

Definition and Basic Function

A COM port, or serial port, is a bidirectional serial interface that facilitates the sending and receiving of data bit by bit. The basic function of a serial port involves converting parallel data from the computer’s internal bus into serial data for transmission, and vice versa. This process is managed by the Universal Asynchronous Receiver/Transmitter (UART) chip.

The COM Port Designation

The COM port designation refers to the naming convention used in operating systems to identify serial ports, such as COM1, COM2, etc. This naming convention is derived from the term “communication port,” highlighting the port’s role in facilitating communication between the computer and external devices.

The History of Serial Ports in Computing

The history of serial ports in computing is a long and varied one, predating the personal computer era. Serial ports originated in early mainframe and minicomputer systems, facilitating communication with terminals and peripheral devices.

Early Computing Applications

In the early computing era, serial communication provided a standardised method for connecting various devices to computers. The RS-232 standard, established in the 1960s, governed serial port implementation across computing systems.

Traditional Uses in the PC Era

As personal computers emerged in the 1980s, serial ports became standard features, typically designated as COM1 and COM2 on IBM PC-compatible machines. They were commonly used for connecting modems for dial-up internet access and other specialised peripherals, including some printers, before being largely replaced by newer technologies.

How Serial Communication Works

Data transfer between devices often relies on serial communication, a method that transmits information bit by bit. This process is fundamental to various computing applications and is used in numerous devices and systems.

Bit-by-Bit Data Transmission

Serial communication operates by transmitting data one bit at a time over a single wire or channel. This is in contrast to parallel communication, which uses multiple wires to send several bits simultaneously. The conversion of parallel data into a sequential stream of bits is crucial for serial transmission.

Synchronous vs. Asynchronous Communication

Serial communication can be classified into synchronous and asynchronous types. In synchronous serial communication, both the sender and receiver operate according to a shared clock signal, ensuring coordinated data transmission and reception. On the other hand, asynchronous communication, commonly used in standard serial ports, relies on start and stop bits to frame each data byte, eliminating the need for a shared clock.

Data Framing and Structure

Data framing in serial communication involves packaging raw data with control bits to help the receiver identify the beginning and end of each data unit. The UART (Universal Asynchronous Receiver/Transmitter) chip manages the conversion between parallel and serial data formats and controls the flow of data through the port.

Understanding PC Serial Port Hardware

The hardware components of PC serial ports are crucial for understanding their functionality and compatibility with various devices. PC serial ports are typically governed by the RS-232 standard, which defines the electrical characteristics, timing, and protocol for serial communication.

RS-232 Standard and Specifications

The RS-232 standard establishes voltage levels, connector types, and pin functions for serial port communication. For more detailed information on computer ports, you can visit this resource.

Serial Port Connectors (DB-9 and DB-25)

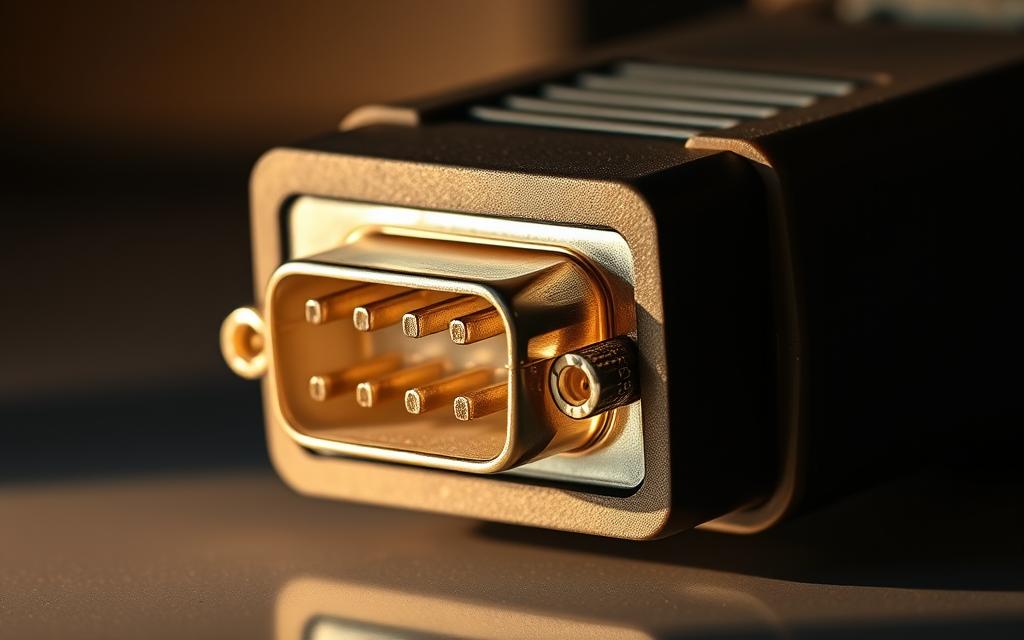

Most modern computers feature a 9-pin DB-9 male connector for serial ports, while older systems may use a 25-pin DB-25 connector. The DB-9 connector is usually located on the motherboard or on a special card inserted into an expansion slot. The physical design of these connectors includes features to prevent incorrect connections, with male connectors typically on the computer and female connectors on cables.

Serial Port Pinout and Signal Lines

Each pin on a serial port connector serves a specific function, including data transmission (TxD), data reception (RxD), ground, and various control signals like Request to Send (RTS) and Clear to Send (CTS). Understanding the pinout is essential for troubleshooting and ensuring compatibility with devices.

Serial Ports vs. Other Connection Types

In the realm of computer connectivity, serial ports offer a unique set of characteristics that distinguish them from other interfaces. Understanding these differences is crucial for selecting the appropriate connection type for specific applications.

Serial vs. Parallel Ports

Serial ports transmit data bit by bit over a single line, whereas parallel ports send multiple bits simultaneously across several lines. While parallel ports were once commonly used for printers and offered faster data transfer rates over short distances, they were more susceptible to interference and required more complex cabling. In contrast, serial ports are more reliable in electrically noisy environments and require fewer physical connections.

Serial Ports vs. USB

The Universal Serial Bus (USB) has largely replaced traditional serial ports in modern computers, offering higher data transfer speeds and plug-and-play functionality. However, serial ports maintain certain benefits, including greater cable length capability and simpler protocol implementation. The following table summarises the key differences:

Key Parameters and Settings of PC Serial Ports

Learn More

Understanding the key parameters and settings of PC serial ports is essential for reliable data transfer. A COM port has several standard features that need to be configured correctly.

Baud Rate and Data Transfer Speed

The baud rate setting determines the speed at which data is transmitted through a serial port, typically measured in bits per second (bps). Common rates include 9600, 19200, and 115200 bps.

Flow Control Methods

Flow control methods manage the data flow between devices to prevent buffer overflow. Hardware flow control uses dedicated signal lines (RTS/CTS), while software flow control uses special characters (XON/XOFF).

Parity, Data Bits, and Stop Bits

Data bits settings specify the number of bits used to represent each character (typically 7 or 8 bits). Parity bits provide basic error detection by checking whether the sum of transmitted bits is odd or even. Stop bits mark the end of each data frame, with options typically including 1, 1.5, or 2 bits.

Serial port configuration requires matching all parameters (baud rate, data bits, parity, stop bits, and flow control) between communicating devices to establish successful communication.

Advantages of Serial Communication

The benefits of serial communication are numerous, including simplicity, reliability, and distance capabilities. Serial communication requires fewer conducting wires, which reduces the cost of the interface and makes it less prone to errors.

Simplicity and Reliability

Serial communication offers remarkable simplicity in its design and implementation. It requires fewer wires and simpler circuitry than parallel interfaces, reducing manufacturing costs and improving reliability. The reliability of serial communication stems from its straightforward protocol and reduced susceptibility to timing issues.

Distance Capabilities

Serial connections excel in distance capabilities. Standard RS-232 connections support cable lengths up to 15 metres, while enhanced implementations like RS-485 extend this range to over 1,200 metres. This makes serial communication ideal for industrial applications where equipment may be widely dispersed.

Noise Immunity

Serial ports offer excellent noise immunity due to their relatively high voltage differentials (typically ±12V). This allows them to function reliably in electrically noisy environments like factories and industrial settings.

Modern Applications Still Using Serial Ports

Despite the rise of newer technologies, serial ports remain a crucial component in various modern applications. Many specialized devices, including barcode scanners, surveillance cameras, and industrial equipment, still rely on serial ports to connect to computers.

Industrial Equipment and Automation

Industrial equipment and automation systems continue to heavily rely on serial ports due to their reliability, noise immunity, and compatibility with legacy control systems. Many industrial machines have operational lifespans measured in decades, making continued support for serial communication essential.

Medical and Scientific Devices

The medical field remains a significant user of serial port technology, with devices such as patient monitors, laboratory equipment, and diagnostic tools designed with RS-232 interfaces for data collection and control. Scientific instruments in research laboratories also often feature serial ports for computer connection.

Point of Sale Systems

Point of sale systems commonly incorporate serial ports for connecting peripheral devices like receipt printers, barcode scanners, cash drawers, and customer displays. The retail sector’s continued use of serial technology stems from its reliability, simplicity, and cost-effectiveness.

The continued presence of COM interfaces on many motherboards and the development of affordable hardware and software solutions for serial ports ensure the RS232 protocol remains relevant. As a result, serial ports continue to be an integral part of various modern systems and applications.

How to Check if Your PC Has a Serial Port

Learn More

Checking for a serial port on your PC is a straightforward process that can be accomplished in a few steps. First, you can perform a physical inspection of your computer.

Physical Inspection

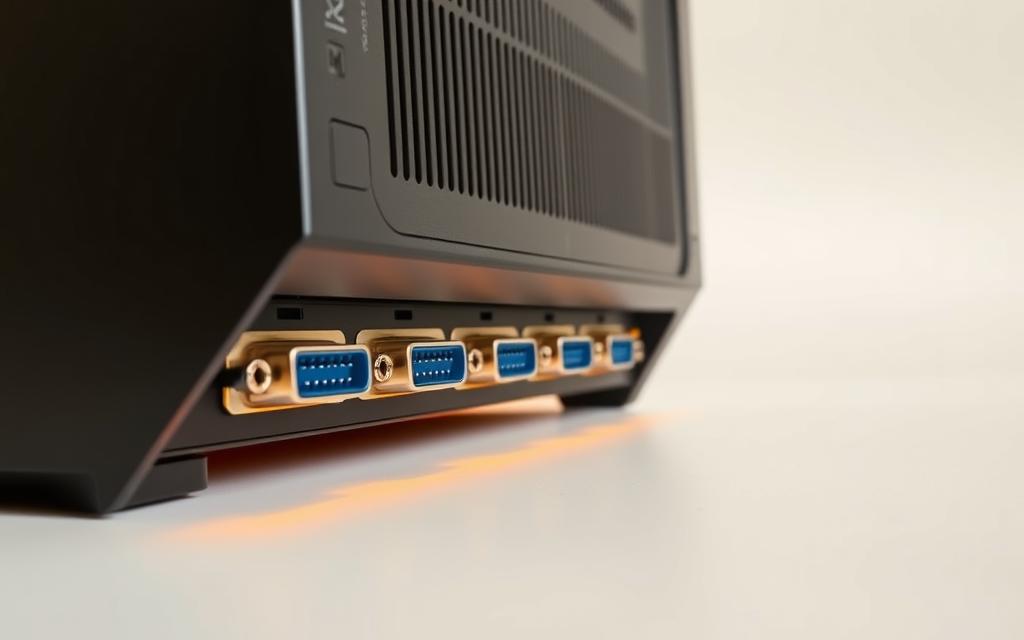

Physically inspecting your computer involves examining the back panel for the distinctive D-shaped 9-pin (DB-9) or less common 25-pin (DB-25) male connector that indicates the presence of a serial port. Modern laptops and compact desktops often lack physical serial ports, though some business-oriented models may still include them or offer them through docking stations.

Checking in Device Manager (Windows)

For Windows users, checking Device Manager provides a software-based method to confirm if your computer has a serial port and whether it’s functioning properly. To access Device Manager, right-click on the Start button, select “Device Manager,” and look for “Ports (COM & LPT)” in the device list, where any installed serial ports will be displayed with their COM designations.

Virtual Serial Ports: The Modern Solution

Learn More

Virtual serial ports offer a software-based emulation of traditional serial ports, enabling modern PCs to communicate with devices that rely on serial connections. This technology has become essential for businesses with substantial investments in legacy equipment.

What Are Virtual COM Ports?

Virtual COM ports are software emulations of physical serial ports that allow modern computers without physical serial interfaces to communicate with devices that require serial connections. These virtual ports appear to the operating system and applications as genuine hardware serial ports, maintaining compatibility with software designed to work with physical COM ports.

Software Solutions for Serial Port Emulation

Software solutions for serial port emulation range from basic drivers that create virtual ports to sophisticated applications that can route serial communications over networks, USB, or Bluetooth connections. These emulation tools often provide additional features not available with physical ports, such as port monitoring, data logging, and the ability to create multiple virtual ports from a single physical connection.

For businesses with substantial investments in serial-dependent equipment, virtual serial port technology offers a cost-effective alternative to replacing entire systems or maintaining outdated computers. By emulating physical serial ports, businesses can extend the usable life of specialised devices that rely on serial communication, ensuring continued compatibility and functionality.

USB-to-Serial Adapters: Bridging Old and New

Learn More

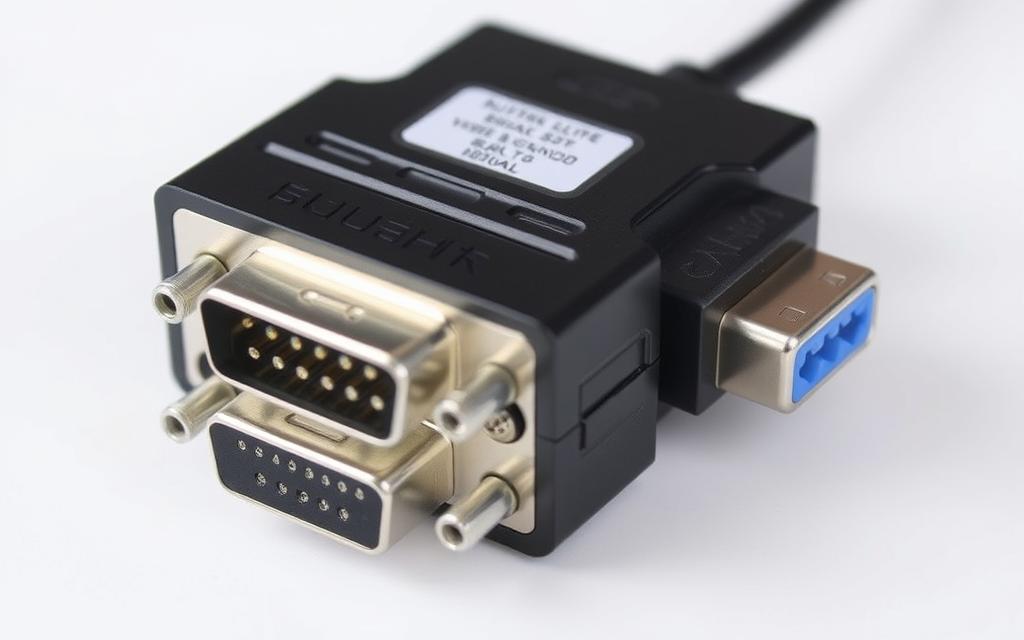

USB-to-serial adapters have emerged as a vital solution for connecting modern computers to legacy devices that rely on serial ports. These adapters provide a hardware bridge between modern computers with USB ports and legacy devices that require serial connections, converting USB signals to RS-232 protocol and vice versa.

How USB-to-Serial Adapters Work

These adapters typically consist of a USB connector on one end and a serial port (usually DB-9) on the other, with an internal chipset that handles the protocol conversion between the two different standards. Most adapters include driver software that creates a virtual COM port in the operating system, allowing applications to communicate with the adapter as if it were a native serial port.

Choosing the Right Adapter

When selecting a USB-to-serial adapter, compatibility with your operating system is crucial, as some adapters may only work with specific versions of Windows, macOS, or Linux. The quality of the chipset used in the adapter significantly impacts reliability, with adapters based on FTDI or Prolific chipsets generally offering better performance and compatibility than generic alternatives.

For industrial or mission-critical applications, it’s advisable to select adapters with robust construction, proper shielding, and certification for the intended environment. Some specialised adapters offer additional features such as optical isolation, surge protection, or support for alternative serial standards like RS-422 or RS-485.

Conclusion: Do You Really Need a Serial Port in 2023?

With the rapid evolution of computer interfaces, the question arises as to whether serial ports remain a necessary component in modern systems. While the serial port is no longer a ubiquitous feature in contemporary computing, it still maintains a presence in specific industries.

For most users, physical serial ports are no longer necessary due to the prevalence of USB, Thunderbolt, and wireless connections. However, professionals in fields like industrial automation, scientific research, and medical equipment maintenance may still require serial port access for specialised equipment.

The decision to use a serial port should be based on the devices you need to connect. For occasional needs, USB-to-serial adapters offer a convenient solution, while virtual serial port software provides an alternative for situations where physical connections are not required.
