What is Serial Port in Computer: Definition and Uses

Data communication between devices is a fundamental aspect of computing, and serial ports have played a crucial role in this process. A serial port is an interface that enables the transfer of data one bit at a time over a single wire or pair of wires.

Historically, serial ports were essential components in computers, facilitating connections between peripherals like keyboards, mice, and modems. Although their prominence has diminished with the advent of newer technologies, serial ports remain relevant in specialized contexts.

This introduction sets the stage for exploring the technical aspects, applications, and continued relevance of serial ports in modern computing environments, providing a clear understanding of their definition, functionality, and significance.

What is Serial Port in Computer

The serial port, a fundamental component of computer architecture, has a rich history dating back to the pre-IBM PC era. On early machines, the COM port was utilized for connecting peripheral devices, serving a different primary function compared to the parallel port. While the parallel port was mainly used for printers, the COM port, short for communication, typically worked with telecommunication devices such as modems.

Basic Definition and Concept

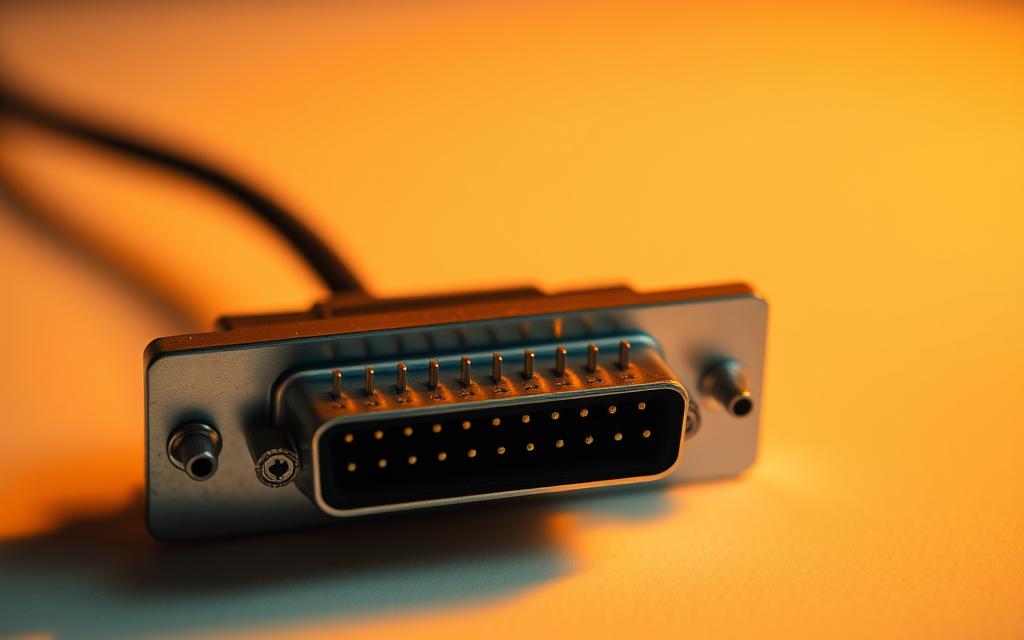

A serial port is a connection interface on a computer that allows devices to communicate serially, one bit at a time. This is in contrast to parallel ports, which transmit data in parallel, multiple bits at once. Serial ports are designed for long-distance communication and are commonly used with devices that don’t require high-speed data transfer.

The basic concept of serial ports revolves around the serial transmission of data. This involves breaking down data into individual bits and transmitting them sequentially over a single communication channel. The receiving device then reassembles these bits into the original data.

Historical Context of Serial Ports

The historical development of serial ports dates back to the early days of computing, predating the personal computer revolution of the 1980s. Initially, serial ports evolved from teletype interfaces to standardized computer ports, becoming a critical component in early computer systems.

• The evolution of serial ports from teletype interfaces to standardized ports marked a significant milestone in computing history.
• Serial ports were initially the primary method for connecting modems, enabling computers to communicate over telephone lines during the early internet and BBS era.
• Various peripherals, including mice, keyboards, and printers, used serial ports before being largely replaced by USB and other modern interfaces.
• The standardization of serial communication through the RS-232 protocol established consistent methods for device communication, playing a crucial role in the development of computer hardware.
• This historical perspective helps readers understand why serial ports were designed the way they were and why certain legacy systems still rely on them today.

Understanding the historical context and basic definition of serial ports provides a foundation for exploring their role in modern computing and their continued relevance in certain applications.

How Serial Ports Work

Understanding how serial ports work requires insight into the serial data transmission mechanism. Serial ports facilitate communication between devices by transmitting data in a sequential manner.

Serial vs Parallel Data Transmission

Serial ports transmit data serially, meaning one bit at a time. This is in contrast to parallel data transmission, where multiple bits are sent simultaneously. The serial method uses fewer wires, making it suitable for long-distance communication.

Bit-by-Bit Data Transfer Process

The data transfer process in serial ports involves several key steps. First, the sending device’s UART (Universal Asynchronous Receiver-Transmitter) converts data from parallel format to serial format for transmission. The data is transmitted bit by bit over the communication link, starting with a start bit and ending with one or more stop bits.

The receiving device’s UART samples the incoming signal, reconstructs the data, and converts it back to parallel format. The baud rate, which is the rate at which information is transferred, must be configured correctly on both devices to ensure successful communication.

The asynchronous nature of most serial communications means that data is transmitted without a separate clock signal. Instead, the timing is maintained through the use of start and stop bits, ensuring proper synchronization and error detection.

Key aspects of the serial data transmission process include:

• The structure of each data frame, which includes start bits, data bits, optional parity bits, and stop bits.
• The importance of matching baud rates on both the sending and receiving devices.
• The role of UART in converting parallel data to serial format and vice versa.

By understanding these elements, users can effectively utilize serial ports for device communication, leveraging their simplicity and reliability for various applications.

Anatomy of a Serial Port

Understanding the anatomy of a serial port is crucial for appreciating how it enables communication between devices. The serial port is a complex component with multiple parts working together to facilitate data transmission.

Physical Components

The physical components of a serial port include the connector and the associated circuitry. The most common type of connector used for serial ports is the DB-9 connector, which has 9 pins arranged in a specific configuration.

Pin Configuration and Layout

The DB-9 connector has a specific pinout according to the RS-232 standard. The pin configuration is as follows:

Pin Number	Signal Name	Description
1	DCD	Data Carrier Detect
2	TxD	Transmitted Data
3	RxD	Receive Data
4	DTR	Data Terminal Ready
5	Gnd	Ground
6	DSR	Data Set Ready
7	RTS	Request To Send
8	CTS	Clear To Send
9	RI	Ring Indicator

The pins are arranged to facilitate data transmission and control signal exchange between devices. The data pins (TxD and RxD) are used for transmitting and receiving data, while the control signal pins (DTR, DSR, RTS, and CTS) are used for handshaking and flow control.

The older DB-25 connector pinout can be mapped to the DB-9 configuration, allowing for compatibility between different systems.

Serial Port Communication Protocols

Understanding serial port communication protocols is essential for ensuring compatibility between different devices. These protocols govern how data is transmitted over serial ports, impacting the efficiency and reliability of device communication.

RS-232 Standard

The RS-232 standard is one of the most widely recognized serial communication protocols. It defines the signal characteristics and timing for data transmission between devices. RS-232 is commonly used in industrial and commercial applications for connecting devices such as modems, printers, and mice.

Key Features of RS-232:

• Single-ended signaling
• Supports data rates up to 1 Mbps
• Typically used for point-to-point communication

RS-422 and RS-485 Standards

RS-422 and RS-485 are serial communication protocols that offer improved performance over RS-232, particularly in noisy environments. RS-422 uses differential signaling, allowing for longer cable lengths and higher data rates. RS-485 extends this capability by enabling multi-point communication.

Protocol	Signaling	Max Data Rate	Max Cable Length	Multi-point Capability
RS-232	Single-ended	1 Mbps	15 meters	No
RS-422	Differential	10 Mbps	1200 meters	No
RS-485	Differential	35 Mbps	1200 meters	Yes

Other Serial Communication Protocols

Beyond the RS-232/422/485 family, several other serial communication protocols are widely used. I²C (Inter-Integrated Circuit) is a popular protocol for communication between integrated circuits, known for its simplicity and low pin count. SPI (Serial Peripheral Interface) is another widely used protocol that supports high-speed data transfer between devices.

CAN (Controller Area Network) is a robust protocol designed for automotive and industrial applications, offering high reliability and fault tolerance. Other specialized protocols include MIDI (Musical Instrument Digital Interface) for audio equipment and DMX512 for lighting control systems.

Modern serial protocols like UART (Universal Asynchronous Receiver/Transmitter) serve as the foundation for higher-level protocols and interfaces, enabling efficient data exchange between devices.

When selecting a serial communication protocol, it’s crucial to consider factors such as data rate requirements, cable length, and the need for multi-point communication. By understanding the strengths and limitations of each protocol, developers can choose the most appropriate solution for their specific application.

Key Parameters of Serial Communication

Serial communication relies on several key parameters to ensure effective data transfer between devices. These parameters are crucial for configuring the serial port and ensuring that data is transmitted and received correctly.

Baud Rate

The baud rate is a fundamental parameter that determines the speed of data transmission. It is measured in bits per second (bps) and must be set identically on both the transmitting and receiving devices.

Data Bits

Data bits are the actual data being transmitted. The number of data bits can vary, typically between 5 and 8 bits, depending on the application and the devices involved.

Parity

Parity is a simple form of error checking that can be used to detect data corruption during transmission. It can be set to none, even, or odd, depending on the requirements of the communication protocol.

Stop Bits

Stop bits are used to signal the end of a data byte. The number of stop bits can be configured, typically to 1 or 2, depending on the application’s requirements.

Flow Control

Flow control is a critical parameter that regulates the flow of data between devices to prevent data loss or buffer overflow. There are two primary types of flow control: hardware flow control and software flow control.

Hardware flow control uses dedicated signal lines, such as RTS/CTS (Request to Send/Clear to Send), to indicate when a device is ready to receive data or needs the sender to pause. This method is efficient and reliable, especially in high-speed data transfer scenarios.

Software flow control, on the other hand, uses special control characters, typically XON/XOFF, embedded in the data stream to manage transmission flow. This method is useful when hardware flow control is not available or practical.

The choice between hardware and software flow control depends on several factors, including the specific requirements of the application, device capabilities, and cable configuration. Understanding the advantages and disadvantages of each method is crucial for selecting the appropriate flow control mechanism.

As noted by a leading expert, “Effective flow control is essential for preventing data loss and ensuring reliable communication between devices.” This highlights the importance of carefully configuring flow control parameters in serial communication.

Types of Serial Port Connectors

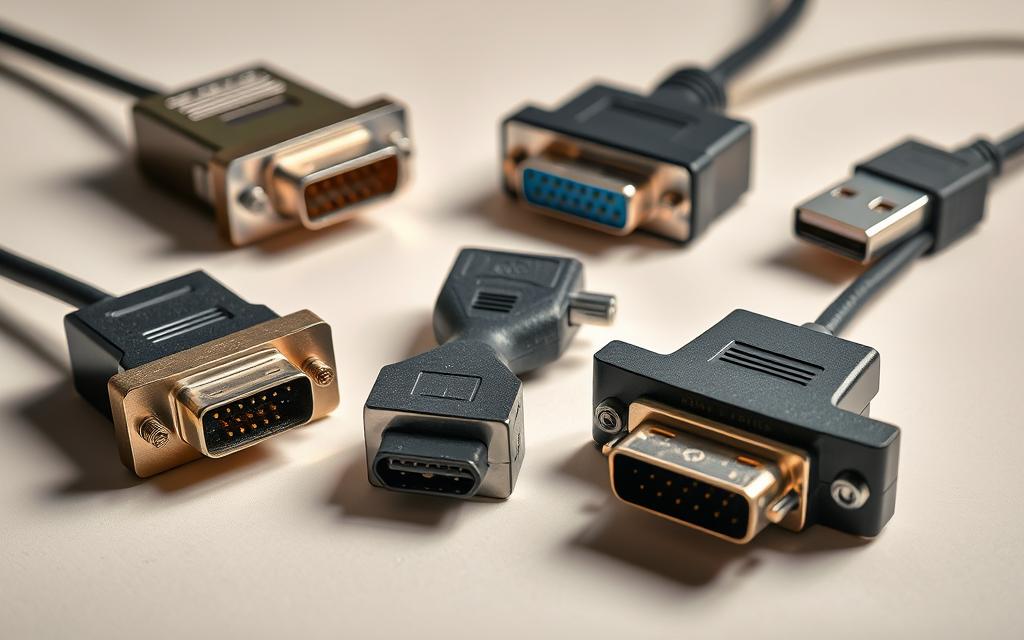

The evolution of serial port connectors has led to various types being used across different applications. As technology has progressed, the need for different connector types has grown, driven by factors such as device compatibility, environmental conditions, and space constraints.

DB-9 Connectors

DB-9 connectors are one of the most common types of serial port connectors. They have 9 pins and are typically used for RS-232 serial connections. These connectors are widely used in various devices, including computers, networking equipment, and industrial machinery.

DB-25 Connectors

DB-25 connectors, with their 25 pins, were once the standard for serial connections. Although they have been largely replaced by DB-9 connectors in many applications, they are still used in certain industrial and legacy systems.

Modern Serial Connector Types

In recent years, the landscape of serial connectors has expanded to include various modern types. USB-to-serial adapters have become increasingly popular, allowing legacy serial devices to connect to modern computers that often lack native serial ports.

Specialized connectors are used in industrial applications, such as terminal blocks and RJ45 connectors for RS-485 networks. Miniaturized connectors are also used in space-constrained devices, highlighting the diversity of modern serial connector types.

The rise of USB and other modern interfaces has incorporated serial data transmission principles, albeit with different physical connectors and protocols. For instance, RJ45 connectors are often used for console connections on networking equipment, demonstrating how serial functionality has been integrated into other connector types.

When selecting a connector or adapter for a specific application, factors such as environmental conditions, space constraints, and compatibility requirements must be considered. This ensures that the chosen connector type meets the needs of the device and the system it is connected to.

Common Uses of Serial Ports

From industrial automation to DIY electronics, serial ports play a vital role in facilitating communication between devices. Their simplicity, reliability, and effectiveness make them a preferred choice across various industries and applications.

Industrial Applications

Serial ports are extensively used in industrial settings for controlling machinery, monitoring systems, and data acquisition. They enable the connection of various industrial devices, such as sensors and actuators, to control systems.

“The use of serial ports in industrial environments is widespread due to their robustness and ability to operate in harsh conditions,” says an industry expert. This highlights the importance of serial ports in maintaining efficient industrial operations.

Networking Equipment

Serial ports are also utilized in networking equipment for configuration, management, and troubleshooting purposes. They provide a direct connection to network devices, such as routers and switches, allowing administrators to perform critical tasks.

Medical and Scientific Equipment

In medical and scientific fields, serial ports are used to connect various devices, such as diagnostic equipment and laboratory instruments, to computers for data transfer and analysis. This facilitates the collection and interpretation of critical data.

Embedded Systems

Serial ports are integral to embedded systems, enabling communication between microcontrollers and other components. They are used in a wide range of embedded applications, from consumer electronics to industrial control systems.

DIY Electronics Projects

The DIY electronics community heavily relies on serial ports for various projects, including home automation, robotics, and environmental monitoring. Platforms like Arduino and Raspberry Pi incorporate serial interfaces, making it easier for hobbyists to program, debug, and communicate with their projects.

Serial communication allows DIY enthusiasts to interface with sensors, displays, and motors, bringing their projects to life. The simplicity and accessibility of serial interfaces make them ideal for educational purposes and entry-level electronics projects.

Some common DIY applications that rely on serial communications include:

• Home automation systems
• Robotics projects
• Environmental monitoring systems
• Interactive art installations

Software tools and libraries simplify serial communication in DIY projects, making it accessible even to those with limited programming experience. This has contributed to the popularity of serial ports in the maker movement and DIY electronics community.

Advantages of Serial Ports

The continued use of serial ports can be attributed to their simplicity, reliability, and cost-effectiveness. Despite the emergence of newer technologies, serial ports remain relevant due to their inherent advantages in various applications.

Simplicity and Reliability

Serial ports are characterized by their simplicity in design and operation. The simplicity of serial communication lies in its straightforward data transmission process, where data is sent one bit at a time over a single wire. This simplicity translates to reliability, as there are fewer components that can fail. The reliability of serial ports is crucial in applications where data integrity is paramount.

The hardware components required for serial communication are typically less expensive than those needed for more complex interfaces. This reduction in hardware cost contributes to the overall cost-effectiveness of serial ports. Moreover, the simpler cabling requirements of serial connections result in lower infrastructure costs, especially for long cable runs.

Long-Distance Communication

Serial ports are capable of transmitting data over long distances without significant degradation. This makes them ideal for applications where devices are not in close proximity. The ability to communicate over long distances is a significant advantage in industrial settings, where equipment may be spread out over a large area.

Cost-Effectiveness

The cost-effectiveness of serial ports is a major factor in their continued use. Serial communication requires fewer conducting wires, hence reducing the cost of the interface. The cost benefits of serial ports are evident in several areas:

• The hardware components are less expensive due to the simplicity of the design.
• The simpler cabling requirements translate to lower infrastructure costs.
• Standardized components are readily available from multiple suppliers at competitive prices, reducing maintenance and replacement costs.

The longevity of serial port standards has created economies of scale in component manufacturing, further driving down costs compared to newer, less established interfaces. Additionally, the ability to reuse existing serial equipment and infrastructure can provide significant cost savings in upgrade scenarios, avoiding the need for complete system replacements.

Advantage	Description	Benefit
Simplicity	Straightforward data transmission process	Reliability and ease of maintenance
Long-Distance Communication	Ability to transmit data over long distances	Ideal for industrial and distributed applications
Cost-Effectiveness	Reduced hardware and infrastructure costs	Lower overall system costs and cost savings in upgrades

Limitations of Serial Ports

Despite their historical significance, serial ports have several limitations that have led to their decline in modern computing environments. These limitations have become particularly evident as technology has advanced and new interfaces have emerged to address the shortcomings of serial ports.

Speed Constraints

One of the primary limitations of serial ports is their relatively slow data transfer rate compared to modern interfaces. Serial ports typically operate at speeds measured in kilobits per second (kbps), whereas modern interfaces like USB 3.0 and Ethernet can achieve speeds of several gigabits per second (Gbps). This significant difference in speed has made serial ports less desirable for applications requiring high-speed data transfer.

Comparison of Data Transfer Rates

Interface	Typical Speed
Serial Port (RS-232)	Up to 115 kbps
USB 3.0	Up to 5 Gbps
Ethernet (1000BASE-T)	1 Gbps

Device Compatibility Issues

Another limitation of serial ports is their decreasing prevalence in modern computers. Many contemporary laptops and desktops no longer come equipped with serial ports, instead featuring USB ports and other modern interfaces. This shift has created compatibility issues for devices that still rely on serial ports, requiring users to seek out adapters or converters to maintain connectivity.

Modern Alternatives

In response to the limitations of serial ports, several modern alternatives have gained prominence. USB (Universal Serial Bus) has become the primary interface for general-purpose computing, offering higher speeds, plug-and-play capability, and power delivery. Other alternatives include Ethernet for networking, Bluetooth and Wi-Fi for wireless connectivity, and specialized industrial networks for specific applications.

While these modern interfaces have largely replaced serial ports in many areas, there are still scenarios where serial ports remain relevant. For instance, some industrial equipment, legacy systems, and specialized devices continue to rely on serial ports for communication. To address this, hybrid approaches such as USB-to-serial adapters and Ethernet-to-serial gateways have been developed, allowing legacy equipment to integrate with contemporary systems.

In conclusion, while serial ports have several limitations, including speed constraints and device compatibility issues, modern alternatives have emerged to address these shortcomings. The development of hybrid solutions has also ensured that legacy systems can continue to be used alongside modern technology.

Serial Ports vs. Modern Interfaces

Serial ports remain a crucial component in various industries, offering simplicity and reliability that modern interfaces often can’t match. As technology advances, it’s essential to understand when to utilize serial ports versus newer interface technologies.

Serial Ports vs. USB

USB has become the standard for peripheral connections due to its high speed and ease of use. However, serial ports have advantages in certain applications, particularly in industrial settings where noise immunity is critical.

For instance, in manufacturing environments, serial connections are often preferred over USB due to their robustness against electromagnetic interference. A comparison of the two interfaces is shown in the table below:

Feature	Serial Ports	USB
Speed	Typically slower	High-speed data transfer
Reliability	High reliability in harsh environments	Generally reliable, but susceptible to interference
Ease of Use	Simple to implement	Plug-and-play functionality

Serial Ports vs. Ethernet

Ethernet has become a dominant force in networking, offering high-speed data transfer over long distances. However, serial ports have their own set of advantages, particularly in legacy systems where Ethernet is not supported.

“Serial ports provide a straightforward and robust communication solution, making them ideal for industrial applications and legacy systems.”

In certain scenarios, the simplicity of serial connections can be beneficial, especially when integrating older equipment into modern networks.

When to Choose Serial Over Modern Interfaces

So, when should you choose serial ports over modern interfaces? The decision largely depends on the specific requirements of your application. For industrial automation, mission-critical tasks, and environments with significant electromagnetic interference, serial ports are often the better choose.

Additionally, when working with legacy systems, serial ports provide a compatible and straightforward solution. It’s also worth considering the cost and complexity of replacing or modifying existing equipment.

In conclusion, while modern interfaces like USB and Ethernet have their advantages, serial ports continue to offer unique benefits that make them suitable for a variety of applications. By understanding the strengths and limitations of each interface, you can make informed decisions about when to utilize serial ports in your systems.

Virtual Serial Ports

In today’s computing landscape, virtual serial ports play a crucial role in bridging the gap between old and new technologies. They enable users to communicate with serial devices in a flexible and efficient manner, without the need for physical connections.

Definition and Purpose

Virtual serial ports are software-based emulations of traditional serial ports, allowing legacy applications to communicate with modern devices. They provide a means to access remote serial devices as if they were directly connected to the local machine.

The primary purpose of virtual serial ports is to ensure compatibility between older software and contemporary hardware. This is achieved by creating a virtual COM port on the local system, which is recognized by serial applications as a hardware interface.

Applications of Virtual Serial Ports

Virtual serial ports have diverse applications in modern computing environments. Some of the key uses include:

• Enabling legacy software to communicate with modern USB devices through USB-to-serial bridges and drivers.
• Facilitating serial port sharing, allowing multiple applications to access a single physical serial port simultaneously.
• Serial port redirection over networks, enabling distributed access to serial devices.
• Simulating serial device behavior for software development and testing purposes.
• Specialized applications such as GPS simulation, industrial automation testing, and point-of-sale system development.

Application	Description
Legacy Software Support	Enables older applications to communicate with modern hardware.
Serial Port Sharing	Allows multiple applications to access a single physical serial port.
Software Development	Simulates serial device behavior for testing purposes.

By understanding the applications and benefits of virtual serial ports, users can harness their potential to improve compatibility, efficiency, and flexibility in their computing environments.

Troubleshooting Serial Port Issues

Effective troubleshooting of serial port issues requires a systematic approach to identify and fix problems. Serial ports, being a legacy technology, still find their use in various industries, including industrial automation, medical devices, and networking equipment.

Common Problems

Serial port issues can arise from various sources, including hardware faults, software configuration errors, and parameter mismatches. Common problems include failure to establish a connection, data corruption, and communication breakdowns.

Diagnostic Tools

To diagnose serial port issues, several tools are available. These include:

• Serial port monitoring software
• Cable testers and analyzers
• Device manager and BIOS settings inspection

Using these tools, you can identify issues such as faulty cables, incorrect settings, or hardware malfunctions.

Solutions and Fixes

Once the issue is identified, applying the appropriate fix is crucial. Solutions include:

• Adjusting device settings to match the required configuration
• Replacing faulty cables or hardware
• Updating software and drivers
• Configuring the serial port settings in the device manager or BIOS

For instance, to configure the settings for a serial port, you need to access the device manager or the BIOS settings on your computer. You can then adjust settings such as the baud rate, data bits, parity, and stop bits to match those required by the device you are connecting to.

By methodically troubleshooting and applying the appropriate fixes, you can resolve serial port issues efficiently, ensuring reliable communication between devices.

Conclusion

In conclusion, serial ports are more than just a legacy technology; they are a testament to the enduring power of simplicity in device communication.

Throughout this article, we have explored the definition and fundamental concepts of serial ports, understanding how they transmit data sequentially one bit at a time. This serial communication method has proven to be reliable and effective in various applications.

The relevance of serial ports persists in specific domains, including industrial automation, embedded systems, and legacy system maintenance, despite the proliferation of newer interface technologies like USB and wireless communication.

The key advantages of serial ports, including their simplicity, reliability, long-distance capability, and cost-effectiveness, continue to make them valuable in certain applications.

Understanding serial port technology remains crucial for professionals working in fields that require seamless device communication. As technology advances, serial ports will continue to evolve, adapting to serve specialized needs in the digital ecosystem.

In summary, while the relative importance of serial ports may have diminished in consumer computing, they remain a vital component in many industries, ensuring their continued relevance in the digital landscape.

FAQ

How do I configure the baud rate for a serial connection?

To configure the baud rate, you need to ensure that both the transmitting and receiving devices are set to the same baud rate. This is typically done through the device’s settings or configuration menu, and common baud rates include 9600, 19200, and 115200 bits per second.

What is the difference between hardware and software flow control?

Hardware flow control uses dedicated lines, such as RTS (Request to Send) and CTS (Clear to Send), to control the flow of data, whereas software flow control uses special characters, like XON and XOFF, to pause and resume data transmission.

Can I use a null modem cable to connect two devices directly?

Yes, a null modem cable is used to connect two devices directly, allowing them to communicate with each other without the need for a modem. This type of cable is commonly used for debugging and testing purposes.

What are the most common types of serial port connectors?

The most common types of serial port connectors are DB-9 and DB-25, which are used for RS-232 connections. Modern devices may also use other types of connectors, such as USB-to-serial adapters or RJ-45 connectors.

How do I troubleshoot a serial port connection issue?

To troubleshoot a serial port connection issue, start by checking the physical connection, ensuring that the cable is securely connected to both devices. Then, verify that the baud rate, data bits, parity, and stop bits are configured correctly on both devices.

What is the maximum cable length for a serial connection?

The maximum cable length for a serial connection depends on the type of serial standard being used and the baud rate. For RS-232 connections, the maximum cable length is typically limited to 50 feet (15 meters) at a baud rate of 19200 or lower.

Can I use a serial port to connect to a network?

While serial ports are not typically used for network connections, some devices, such as routers and switches, may have a serial console port that allows for out-of-band management and configuration.

What is the purpose of parity bits in serial communication?

Parity bits are used to detect errors in serial data transmission. By adding a parity bit to the data, the receiving device can verify that the data was transmitted correctly and detect any errors that may have occurred during transmission.
